Active Water Treatment Plant & Turnbull Anchor – Fording River Operations

  • Client Name: Teck
  • Project Name: Active Water Treatment Plant & Turnbull Anchor – Fording River Operations
  • Location: Elkford, BC
  • Sector: Mining

Duration: 33 months

Crew size: 50

Highlights:

  • 11,000m³ concrete poured

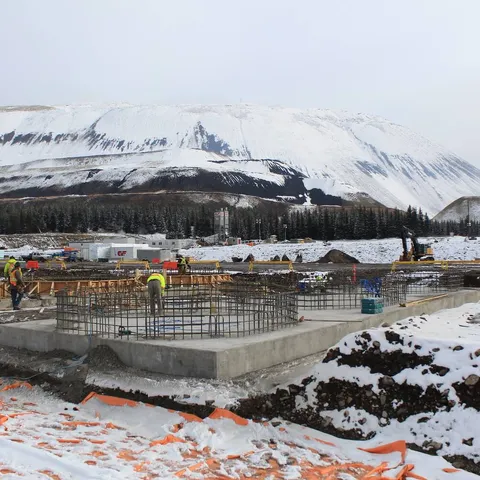

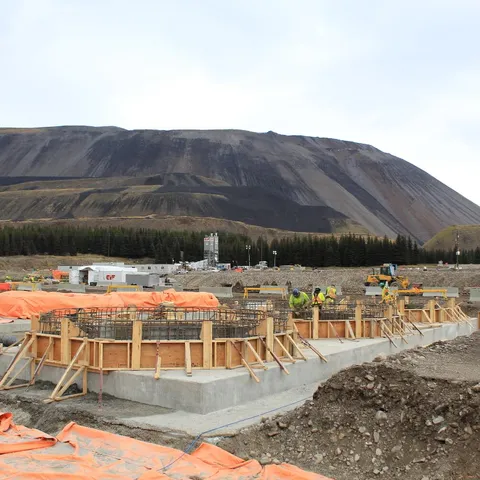

  • 30+ large tank bases with on-site batch plant
  • Cellular concrete pipe zone fill
  • Sandblast & epoxy coating on tank bases
  • 700m2 of masonry block walls (300mm wide)
  • Supply & install of 1m diameter embedded pipe sleeves
  • Monitored heat of hydration using digital thermal couplers
  • Mass concrete pour including internal thermal coupler installation and heat of hydration monitoring
  • Large 1m x 3m steel pipe embeds installed into mass concrete pour
  • Project delivery on schedule and budget during adverse winter weather conditions

Image 1 of 20

1

Image 2 of 20

2

Image 3 of 20

4

Image 4 of 20

6

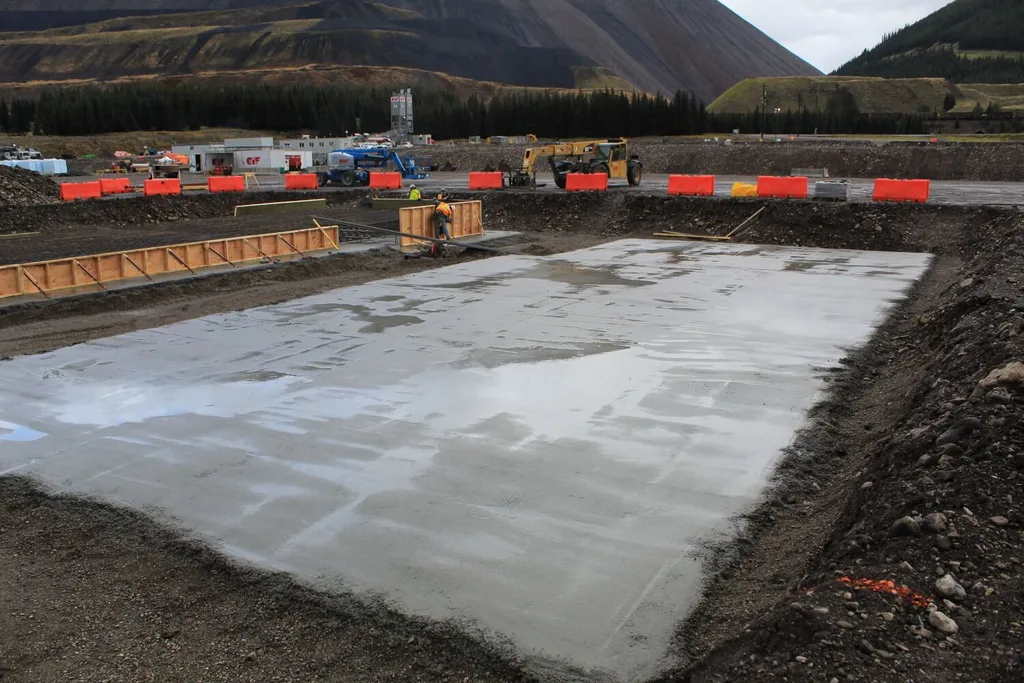

Image 5 of 20

7

Image 6 of 20

8

Image 7 of 20

11

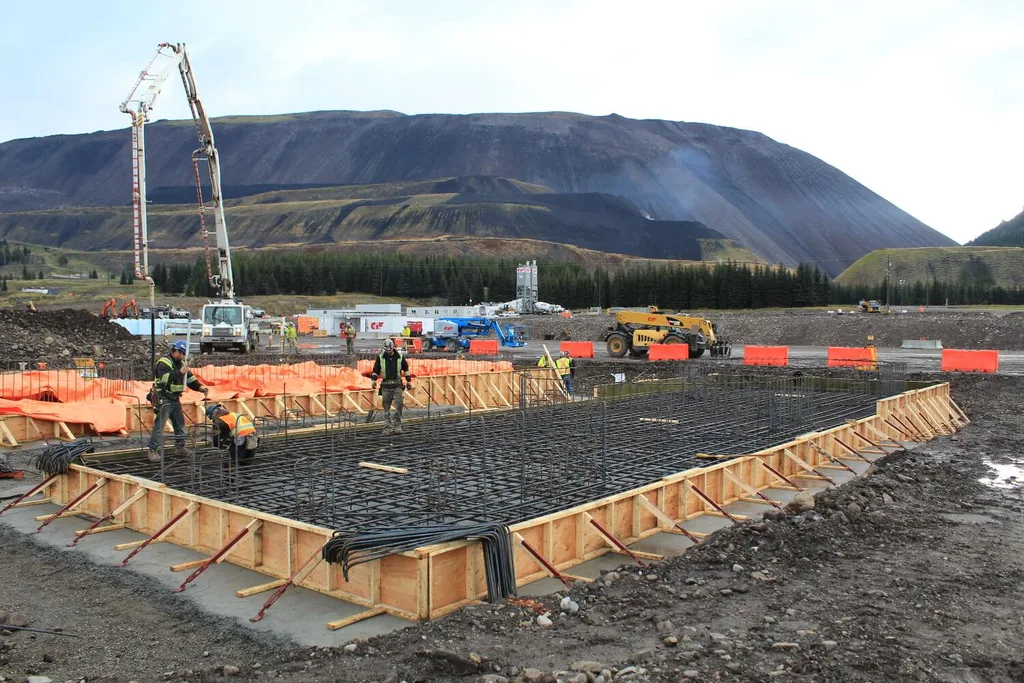

Image 8 of 20

16

Image 9 of 20

17

Image 10 of 20

21

Image 11 of 20

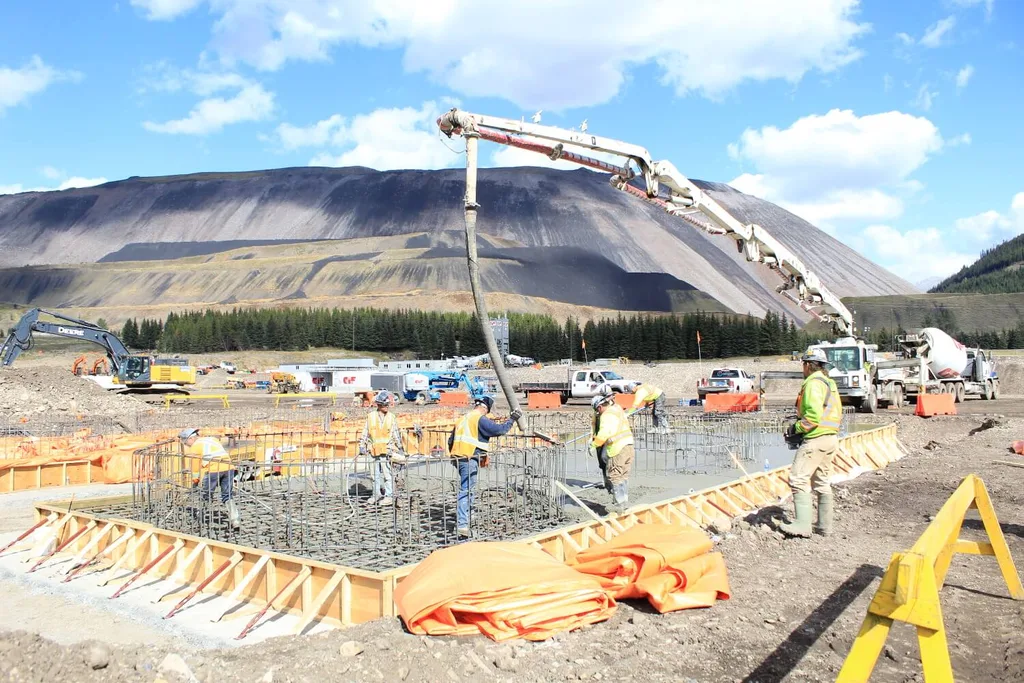

23

Image 12 of 20

25

Image 13 of 20

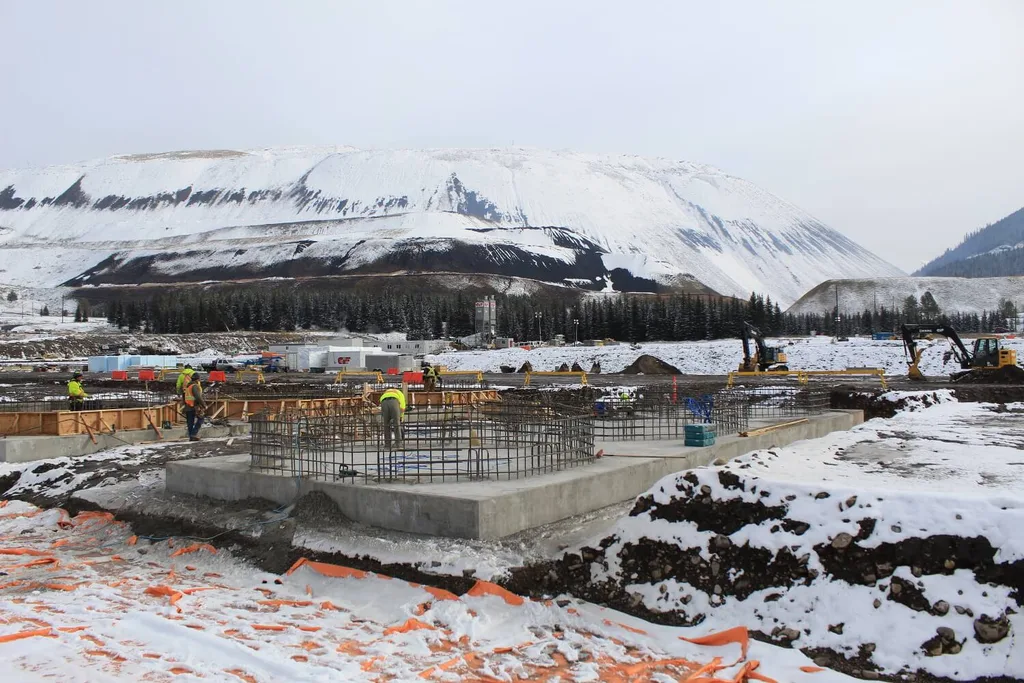

26

Image 14 of 20

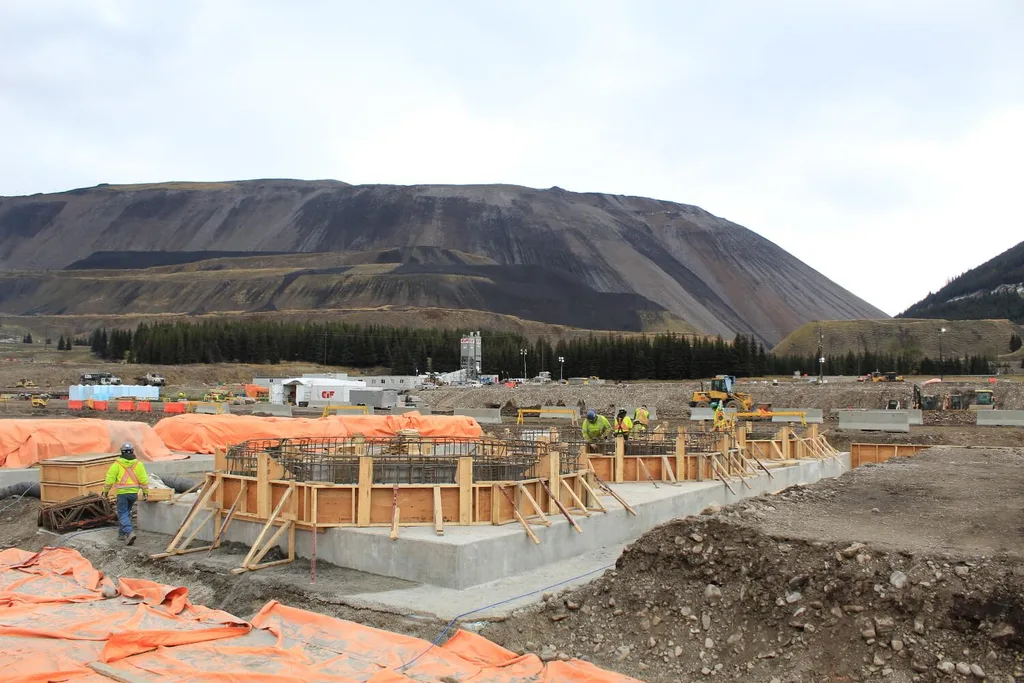

31

Image 15 of 20

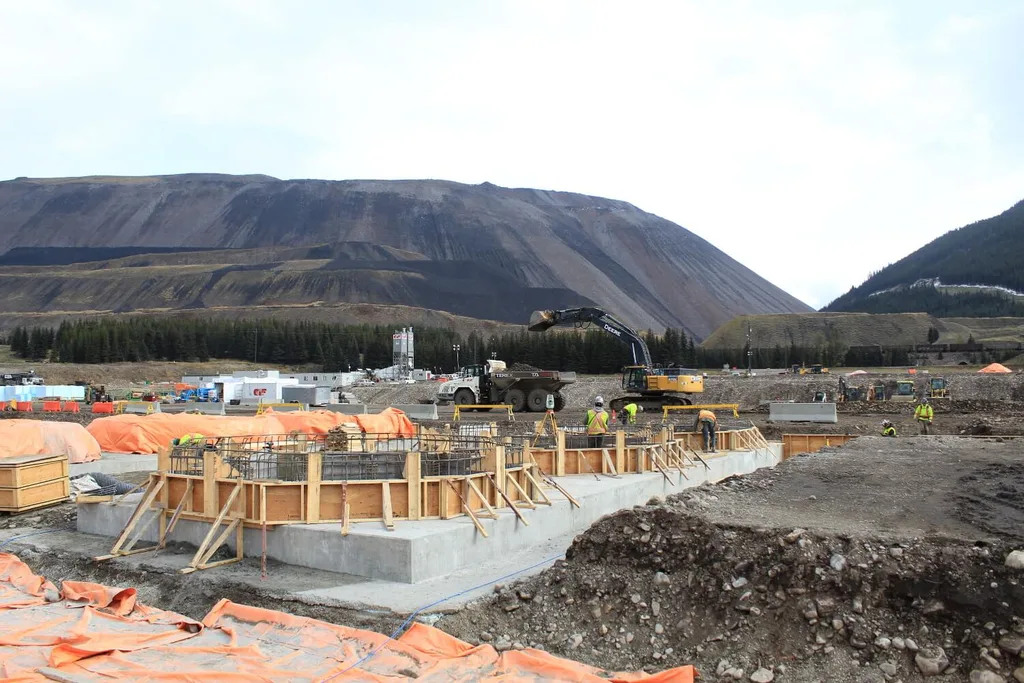

30

Image 16 of 20

32

Image 17 of 20

33

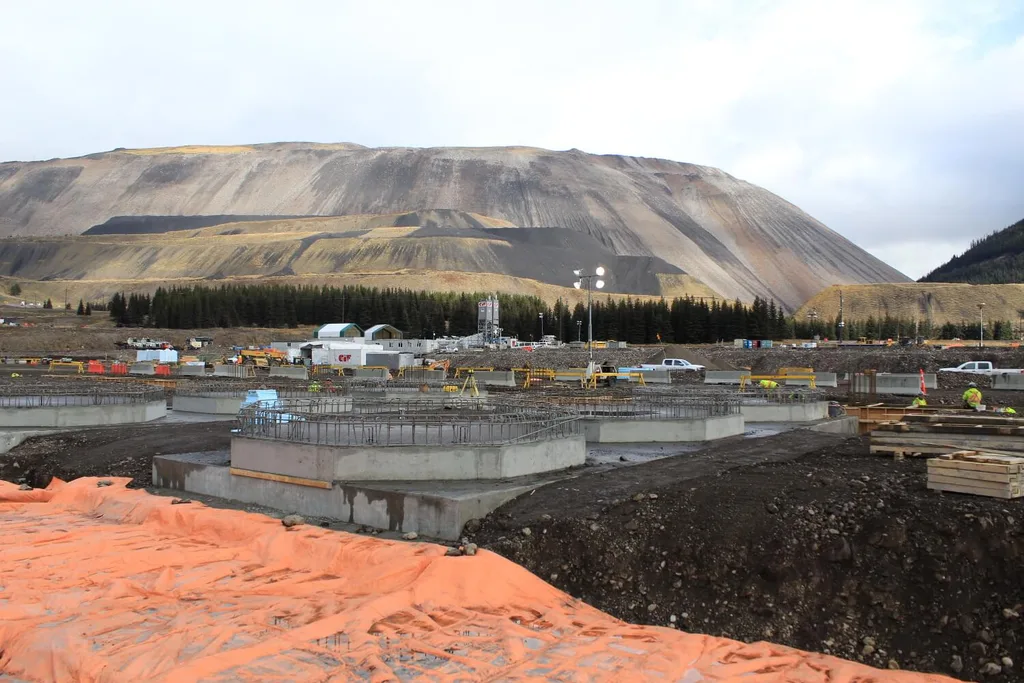

Image 18 of 20

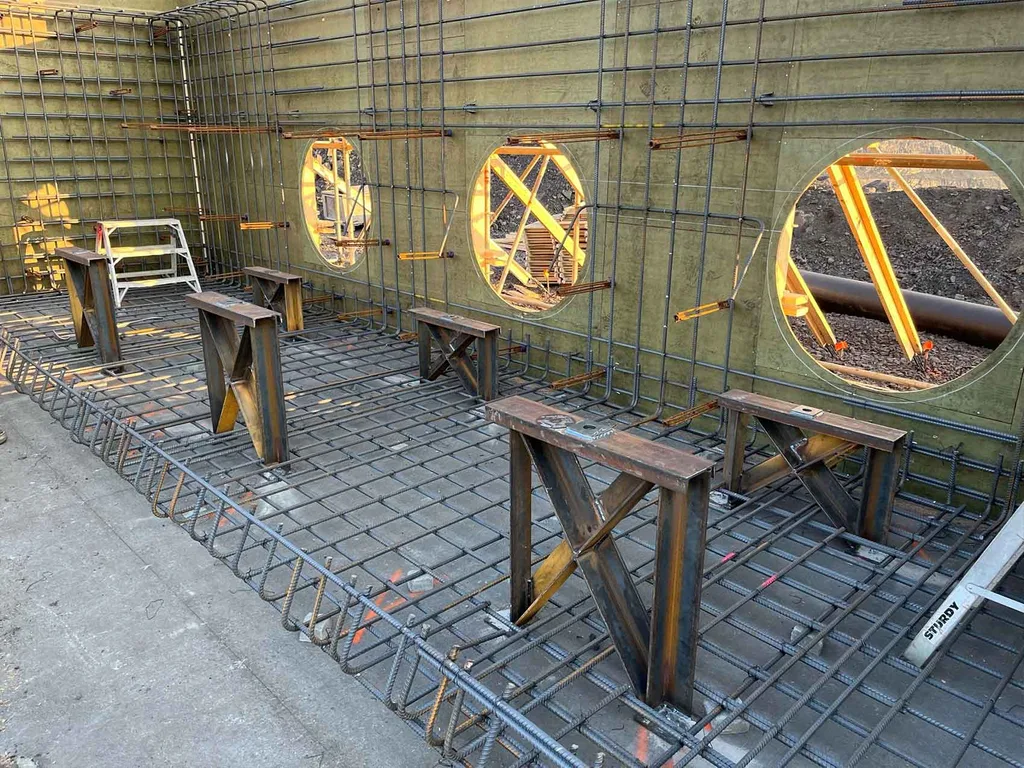

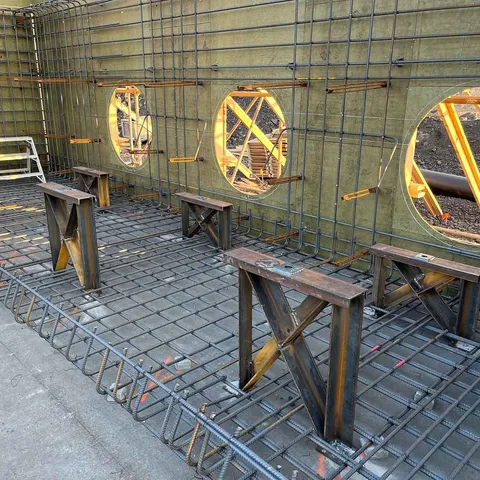

Wall with large pipe openings being prepared for concrete pouring

Image 19 of 20

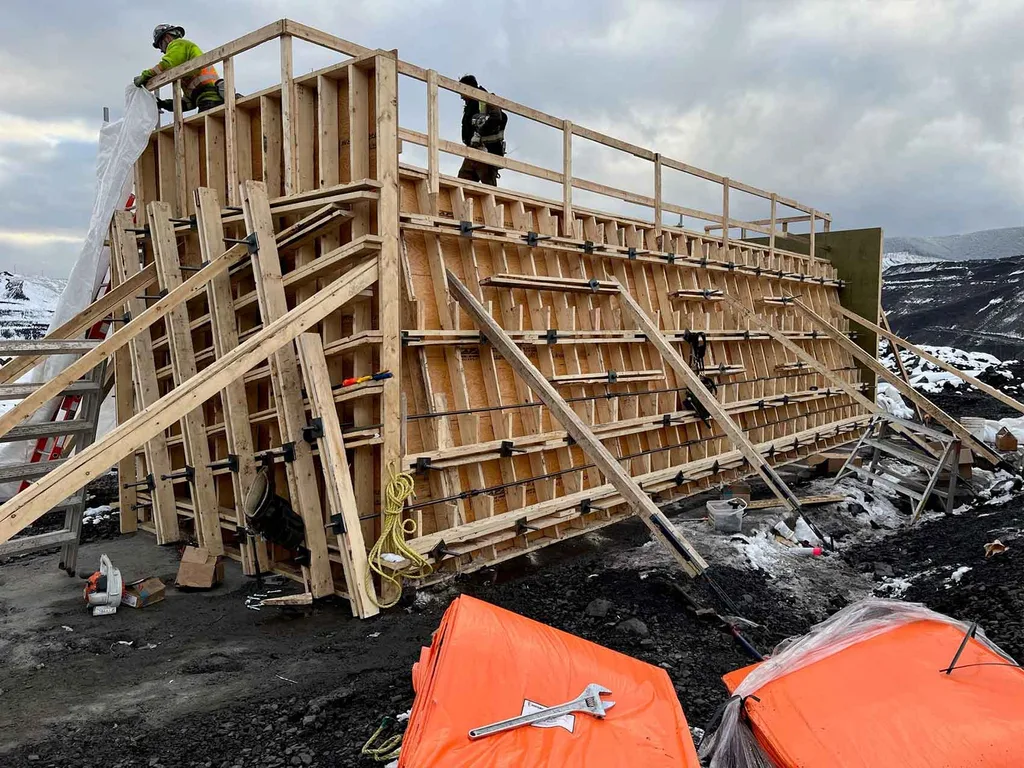

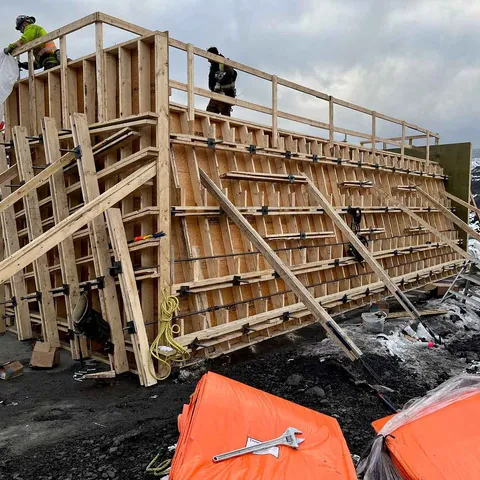

Building fully framed and prepared for concrete pouring

Image 20 of 20

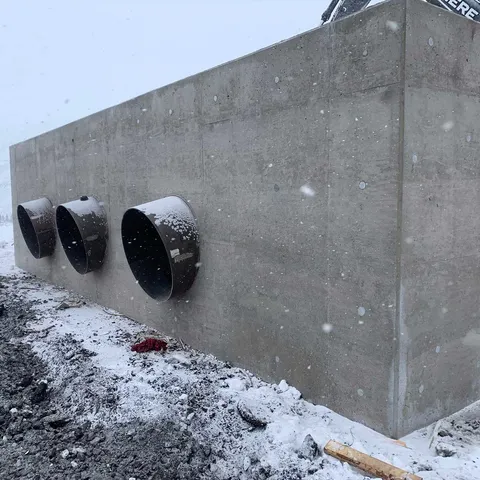

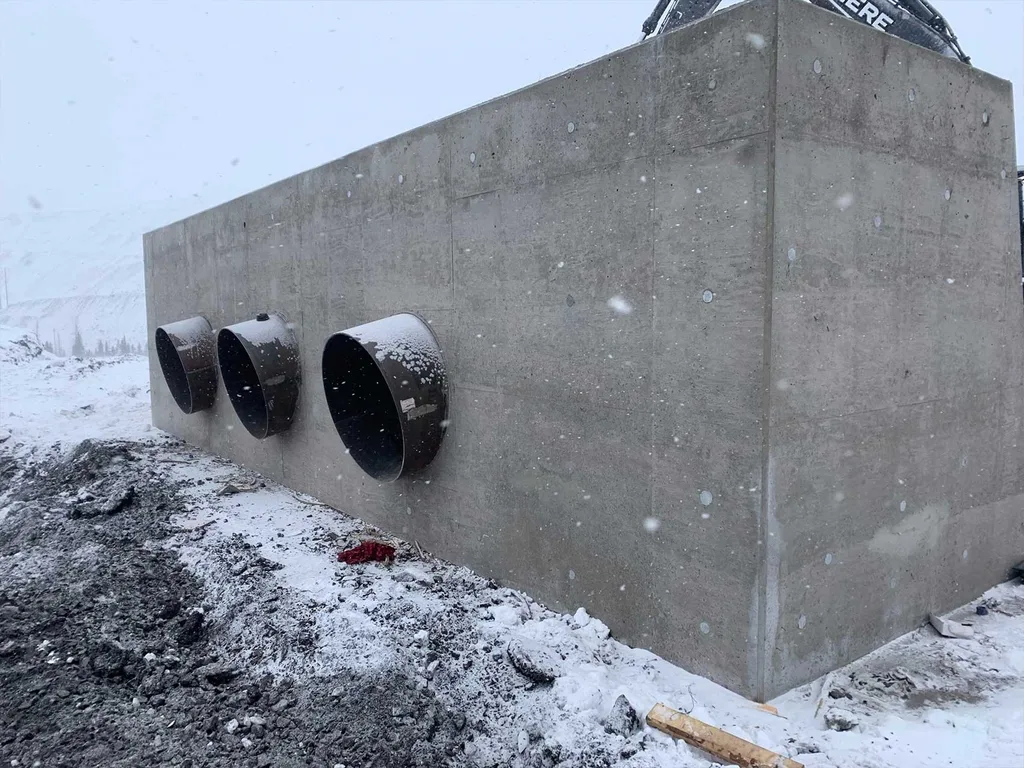

Finished concrete all with three pipes
